Safety Collar Landing Gear Installation

This section covers installing landing gear vertical tubes with attached safety collars.

IF1200A Updated Landing Gear

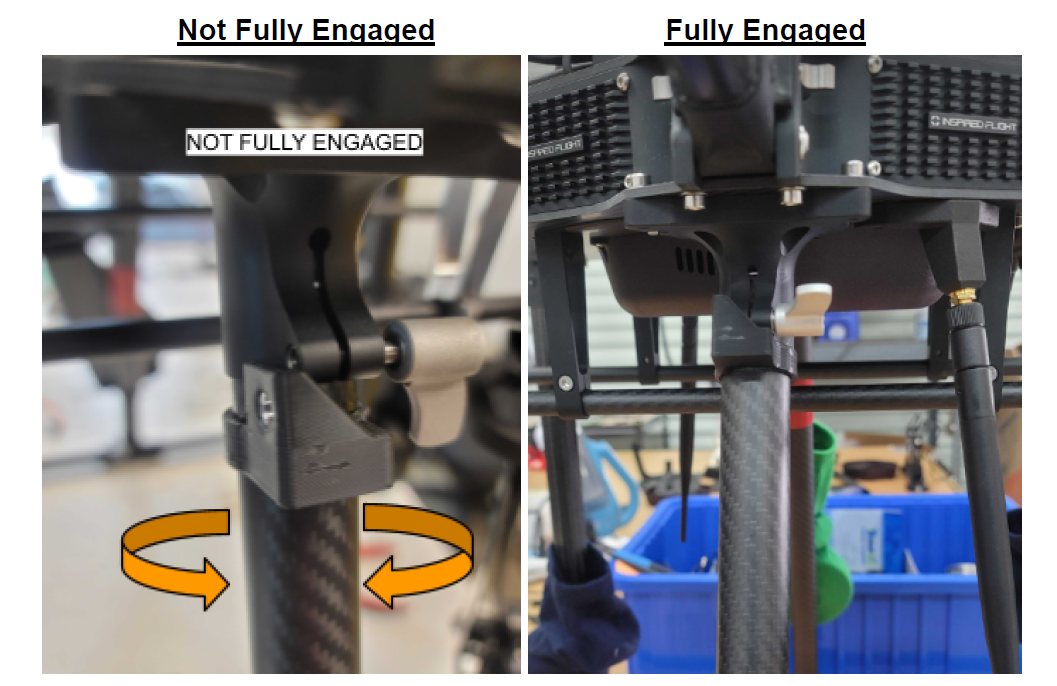

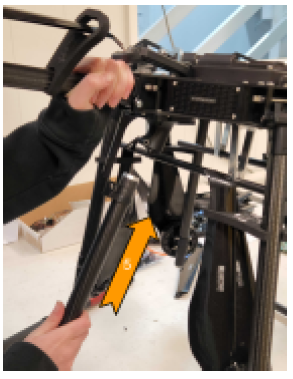

1. Holding the arm near the shoulder joint, tilt the drone up and insert the landing gear vertical tube with the safety collar. Note: To get the landing gear to fully engage, you may need to rotate the vertical tube side to side.

Installing Landing Gear Vertical wth Safety Collar

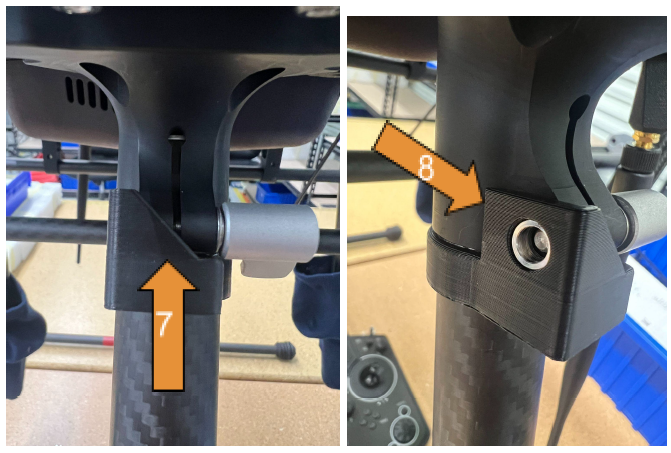

1. Ensure the vertical landing gear is fully engaged and tighten the screw clamp until the threads engage the threaded insert on the safety collar.
