# Controller Settings

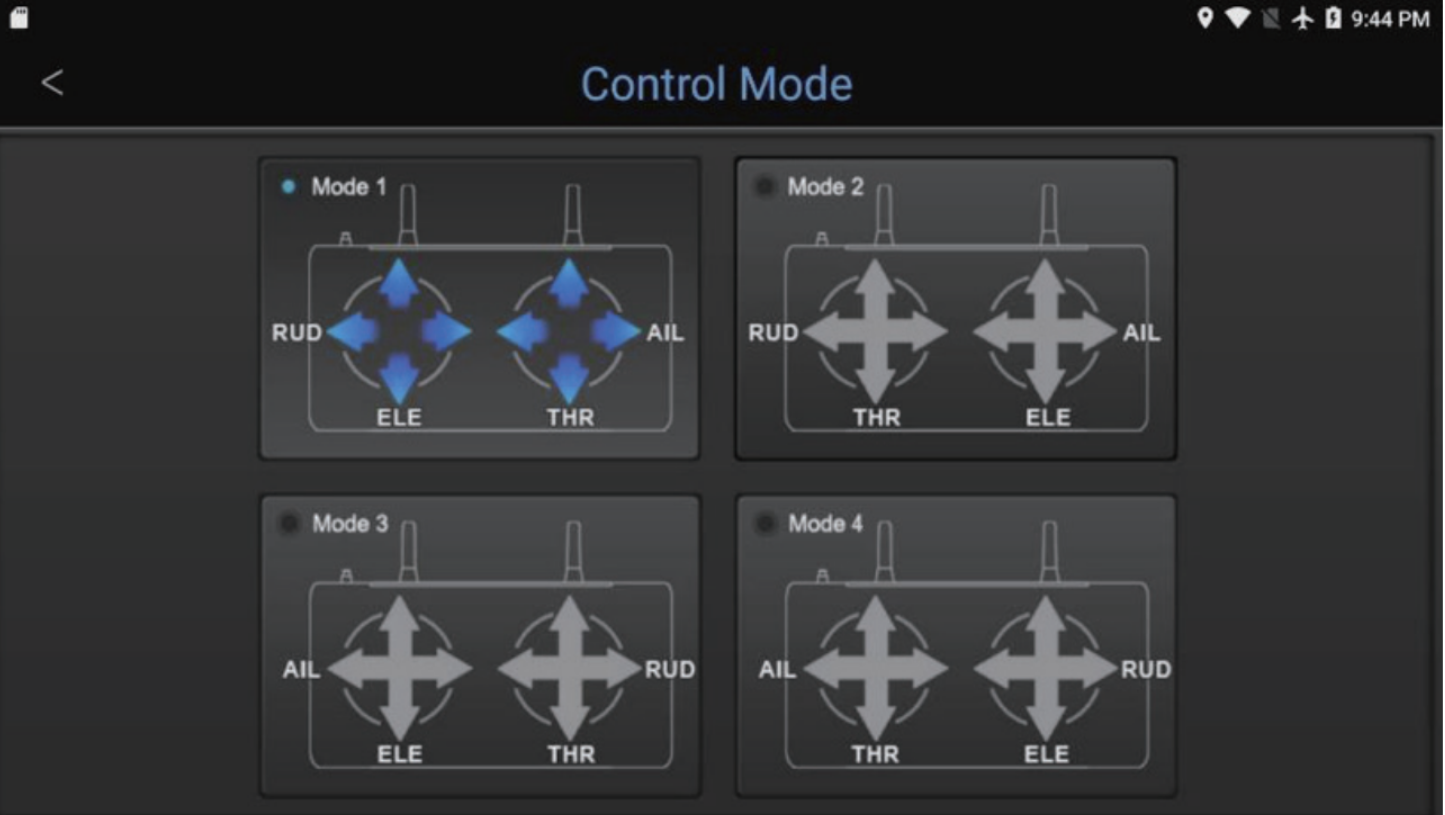

#### Control Modes: Configure the transmitter mode

<figure><img src="https://240141666-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhMePZ0UIa6VYv9VbYu4u%2Fuploads%2FDRLU5pfnbcl569mSiZqC%2FScreenshot%202025-09-30%20153549.png?alt=media&#x26;token=fa85164a-55f6-4ac3-bd3c-2c625eaca97a" alt=""><figcaption></figcaption></figure>

#### Stick Calibration: Calibrate sticks

<figure><img src="https://240141666-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhMePZ0UIa6VYv9VbYu4u%2Fuploads%2FomiAVfn5fsDOHacIbLUv%2FScreenshot%202025-09-30%20153648.png?alt=media&#x26;token=c78bb284-cde0-43bd-b9ca-efff8d1eb217" alt=""><figcaption></figcaption></figure>

{% hint style="warning" %}

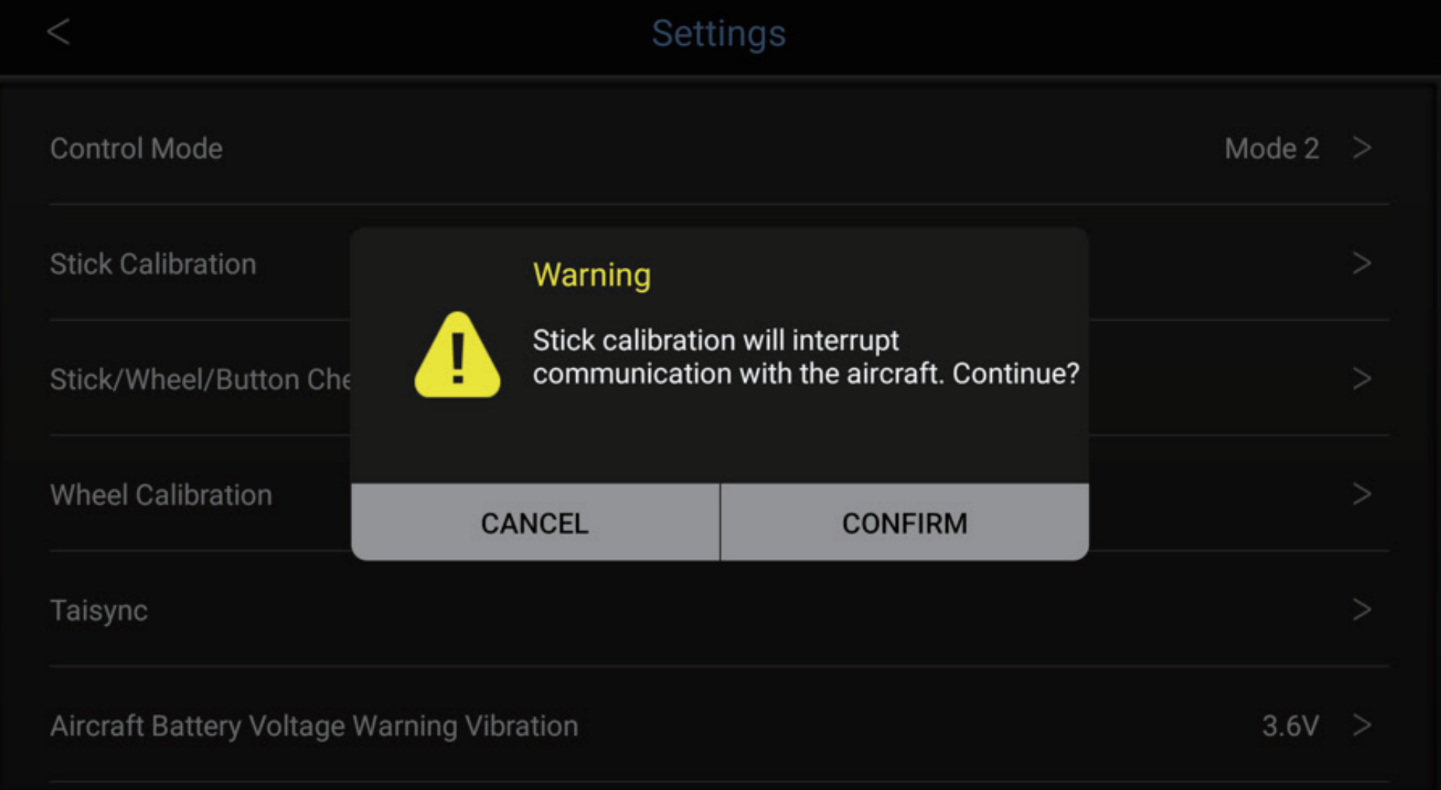

When “Stick Calibration” is selected, the following warning will
&#x20;appear. Communication with the drone will be interrupted. Ensure it is safe
&#x20;before tapping **CONFIRM.** Tap **CANCEL** to return to the settings menu.
{% endhint %}

Follow the on-screen instructions to complete stick calibration.

<figure><img src="https://240141666-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhMePZ0UIa6VYv9VbYu4u%2Fuploads%2FM8EljjDGNr8lZIgny3Mf%2FScreenshot%202025-09-30%20153827.png?alt=media&#x26;token=ce789a9f-7daa-4357-a414-41473795ce1b" alt=""><figcaption></figcaption></figure>

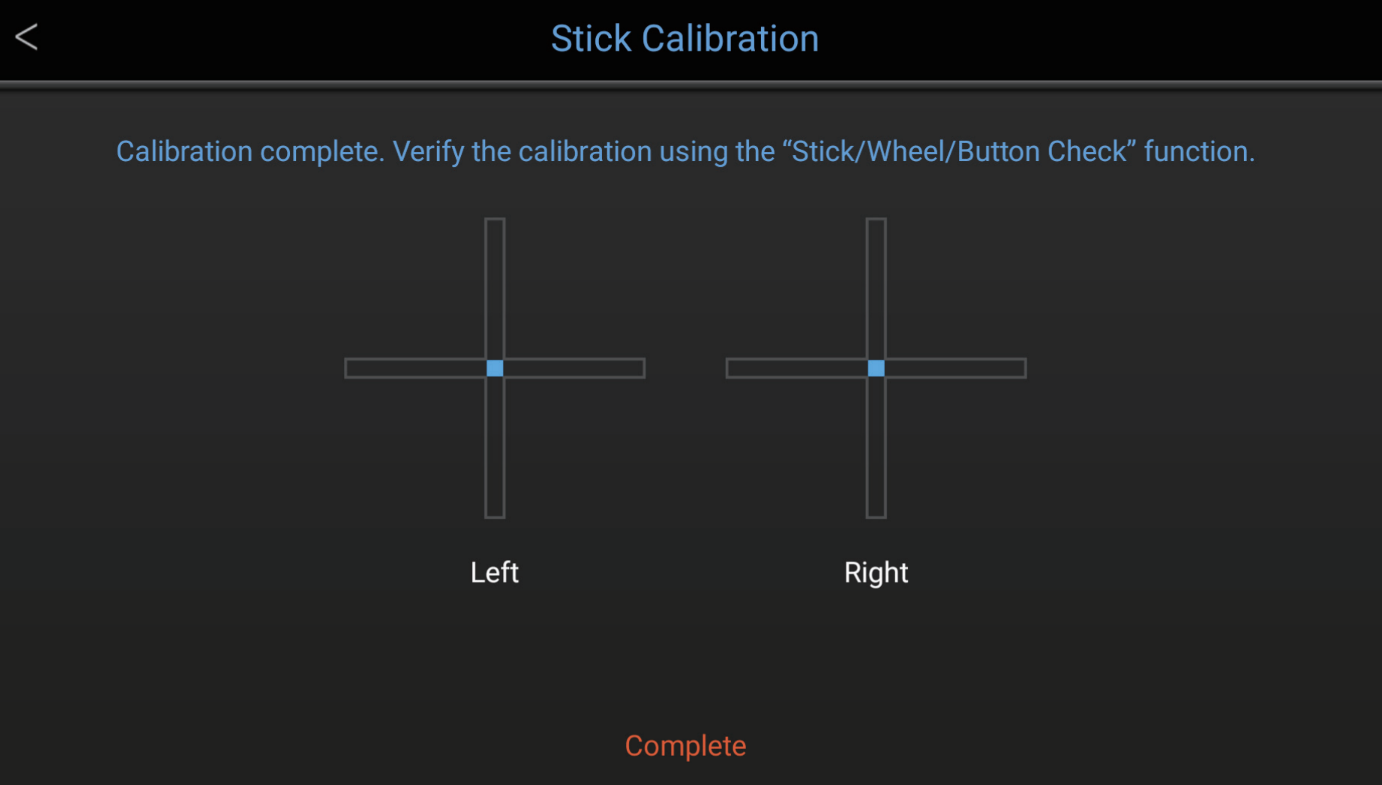

When finished, tap **<** in the top left corner to return to the settings menu.

<figure><img src="https://240141666-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhMePZ0UIa6VYv9VbYu4u%2Fuploads%2FvE1sEralbPSKYfMDzCB3%2FScreenshot%202025-09-30%20153908.png?alt=media&#x26;token=f41bb7da-212c-453c-819b-a9c3a4515cf2" alt=""><figcaption></figcaption></figure>

{% hint style="warning" %}
If the control stick is not calibrated, the drone may drift, fail to arm, or have
&#x20;limited control. Always calibrate the stick to ensure proper operation.
{% endhint %}

#### Stick/Wheel/Button Check: Check input functions

The operation of each switch, button, and wheel can be verified on the
&#x20;screen as shown below. Use this screen to check functions after calibration
&#x20;or if you notice any irregularities.&#x20;

*Note: When Stick/Wheel/Button Check is selected, the following warning will appear. Communication with the drone will be interrupted. Ensure it is safe before tapping **CONFIRM**. Tap **CANCEL** to return to the settings menu.*&#x20;

<figure><img src="https://240141666-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhMePZ0UIa6VYv9VbYu4u%2Fuploads%2FCSRZy6vOKGtc4dg248ju%2FScreenshot%202025-09-30%20161621.png?alt=media&#x26;token=e47806eb-a1ae-41a1-ba92-28bd786ada0d" alt=""><figcaption></figcaption></figure>

<figure><img src="https://240141666-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhMePZ0UIa6VYv9VbYu4u%2Fuploads%2FLoUiHyY3TZCH02HkKnW0%2FScreenshot%202025-09-30%20161653.png?alt=media&#x26;token=0c477ab2-13e0-4e43-b82e-f9a3000e758a" alt=""><figcaption></figcaption></figure>

{% hint style="danger" %}
Do not use the Stick/Wheel/Button Check function during flight. This will
&#x20;interrupt communication with the drone and prevent command transmission.
{% endhint %}

#### Wheel Calibration: Calibrate scroll wheel

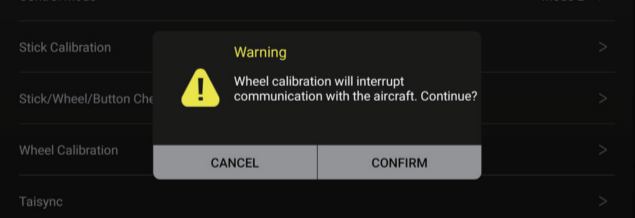

*Note: When **WHEEL** is selected, the following warning will appear.
&#x20;Communication with the drone will be interrupted. Ensure it is safe before
&#x20;tapping **CONFIRM**. Tap **CANCEL** to return to the settings menu.*

<figure><img src="https://240141666-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhMePZ0UIa6VYv9VbYu4u%2Fuploads%2FazcNLMqyi0MPE2FIa8GC%2FScreenshot%202025-09-30%20161835.png?alt=media&#x26;token=baedb460-7301-4e38-9379-fbe7e8eb5cff" alt=""><figcaption></figcaption></figure>

Follow the on-screen instructions to complete stick calibration.
&#x20;When finished, tap **<** in the top left corner to return to the settings menu.

{% hint style="warning" %}
If the scroll wheel is not calibrated, the drone may drift, fail to arm, or have
&#x20;limited control. Always calibrate the stick to ensure proper operation.
{% endhint %}
