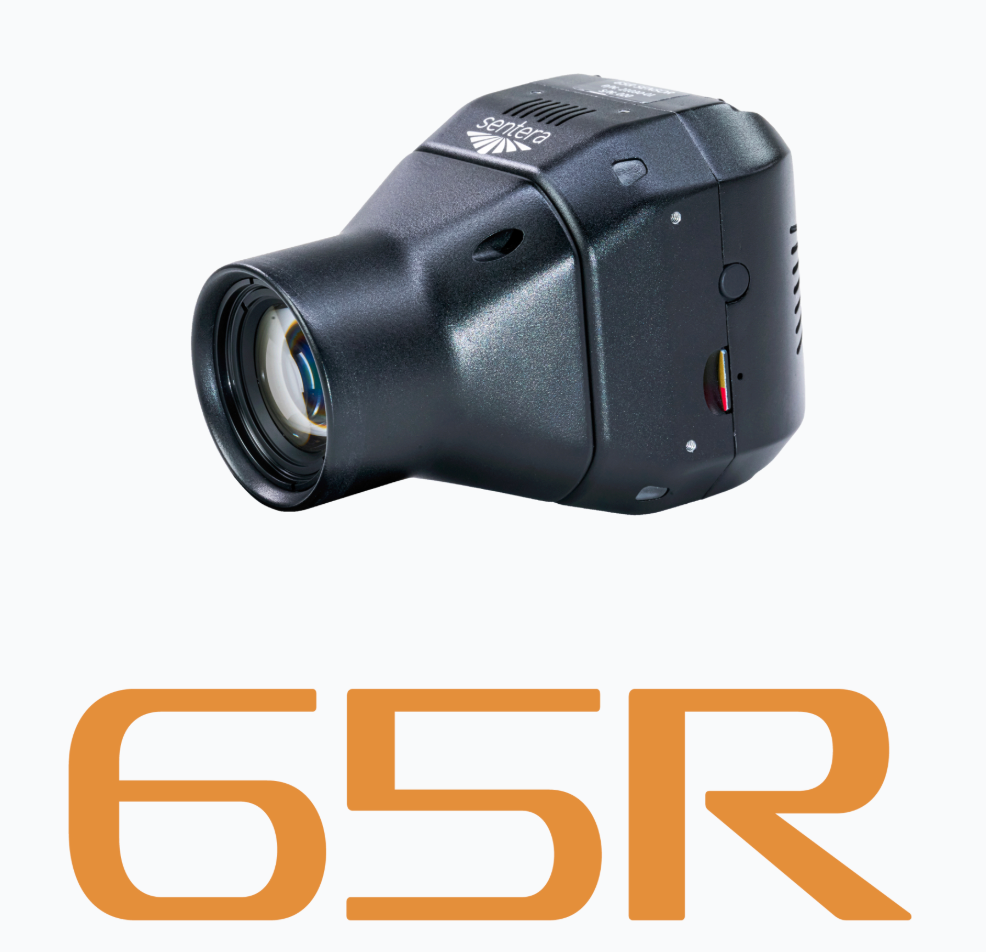

Sentera 65R
Note: The cameras currently do not have a live video feed.
Configuration
CAM2_TYPE = 5 Ensure this parameter is set correctly. If changes are made, reboot the vehicle for the new settings to take effect.
Mission Specifications
Both cameras are pre-configured in the latest version of IGC software. Select the appropriate model in IGC to generate an accurate flight path.
Safe Flight Parameters for Both Cameras
Sentera provides conservative specifications to ensure consistent data collection:
Altitude: 200–400 feet
Speed: 8 m/s (18 mph)
Overlap: 70%
65R Camera:
In optimal conditions, speed can be increased to 15 m/s (33 mph) with a photo interval of up to 0.4 seconds.
Data Offload Procedure
Ensure the vehicle is powered on with the Sentera camera attached.
Use the specific USB-C to USB-C cable provided with the equipment to connect the camera to your PC. A right-angle adapter is recommended to prevent gimbal movement.
Access the camera's web interface:
Open the file explorer on your PC.
Type
\\192.168.42.1in the search bar to access the camera’s files.Open the folder from your flight to offload images.
Note: A login prompt may appear when navigating to the IP address. If prompted, enter the username "Sentera" with no password to proceed.
